Wheelie Bin Hoist

BTM/300/1250/M

BTM/300/1250/M

Features

  • Stainless Steel or Mild Steel Construction
  • Standard and Custom Design Machines
  • Fully TIG/MIG Welded Construction
  • Lifts for all sizes of Wheelie Bins
  • Tip Heights up to Customers’ Requirements
  • Lifting Capacity up to 1000 Kgs
  • Chain or Screw Driven Complete with Unique Safety Latch
  • Fully Enclosed Safety Guard Option
  • Fully Load Tested and CE Certified
  • LOLER Inspection and After Sales Service Available
  • Direct from a British Manufacturer
Description

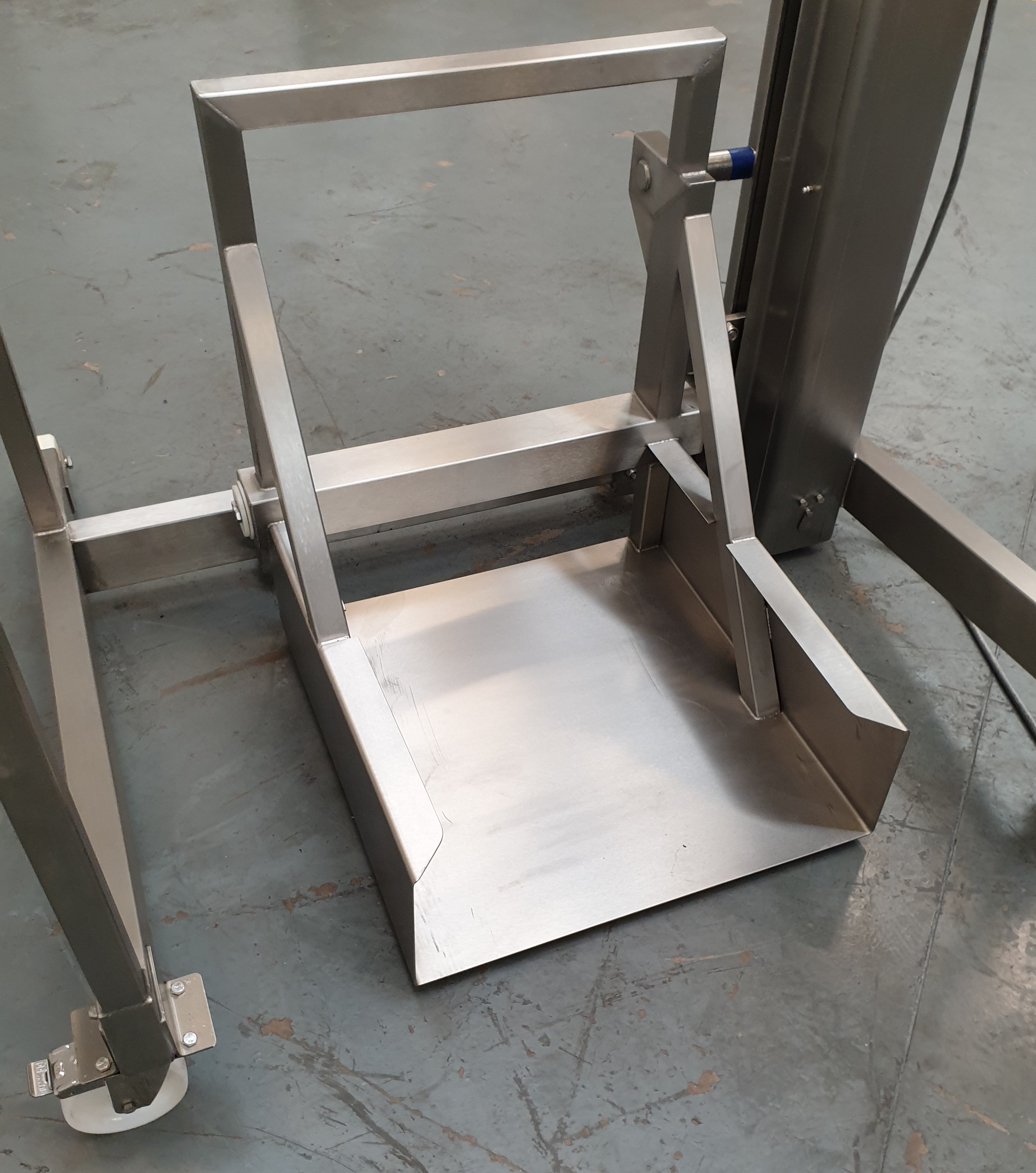

BTM/300/1250/M Wheelie Bin Hoist

This Single Pillar Wheelie Bin Hoist is designed to lift and tip a Wheelie Bin at a discharge height of 1250mm. The Wheelie Bin Hoist is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be bolted to the floor. The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column. The unguarded Wheelie Bin Hoist is fitted with our unique safety latch which engages automatically in the extremely unlikely event of a lift chain failure.

Wheelie Bin Hoist Electrical Control

This Wheelie Bin Hoist is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site. The unguarded Wheelie Bin Hoist operates on a ‘hold to run’ principle such that the ‘Up’ or ‘Down’ pushbuttons must be held for the Wheelie Bin Hoist to operate. As soon as either button is released, the Wheelie Bin Hoist will stop. The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.

Specification
Description Single Pillar 240 Litre Wheelie Bin Hoist
Model No. BTM/300/1250/M
Safe Working Load 300 Kgs
Tipping Height 1250mm
Tipping Angle 135 Degrees
Overall Height 2443mm
Machine Handing Right Hand
Maximum Headroom 3000mm
Tipping Chute No
Container Description 240 Litre Wheelie Bin
Base Arrangement Mobile On Castors
Control Circuit 24Vac
Electrical Rating IP65
Limit Switches Telemecanique
Motor Detail 0.75kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE
Gearbox Detail SEW Eurodrive
Output R.P.M 28 R.P.M.
Ratio 50:1
Load/Lift/Tension Chain ¾" Simplex
Tensile Strength 3000 Kgs
Lift Speed 6.4 Meters/Minute
