BTM/300/1850/M Single Pillar Mobile Bin Hoist

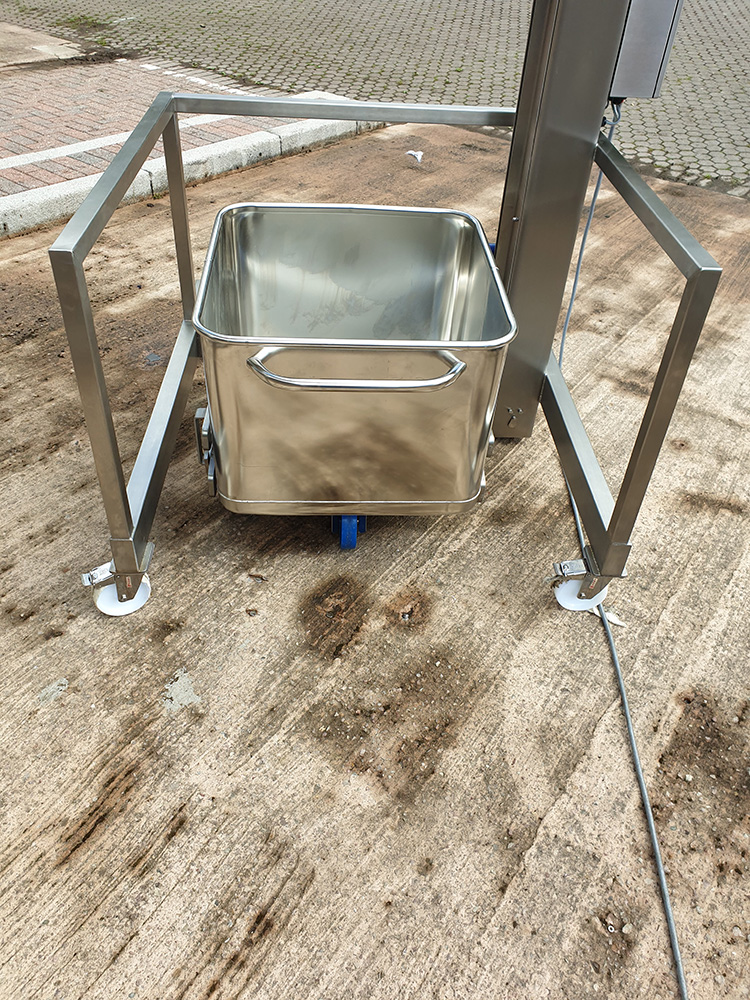

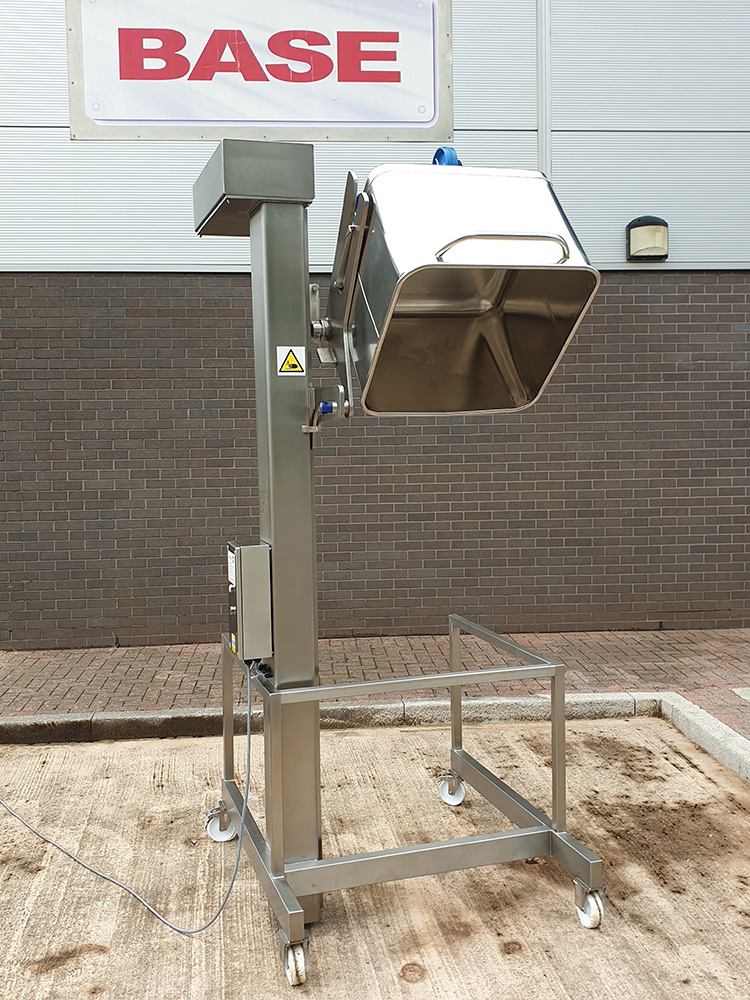

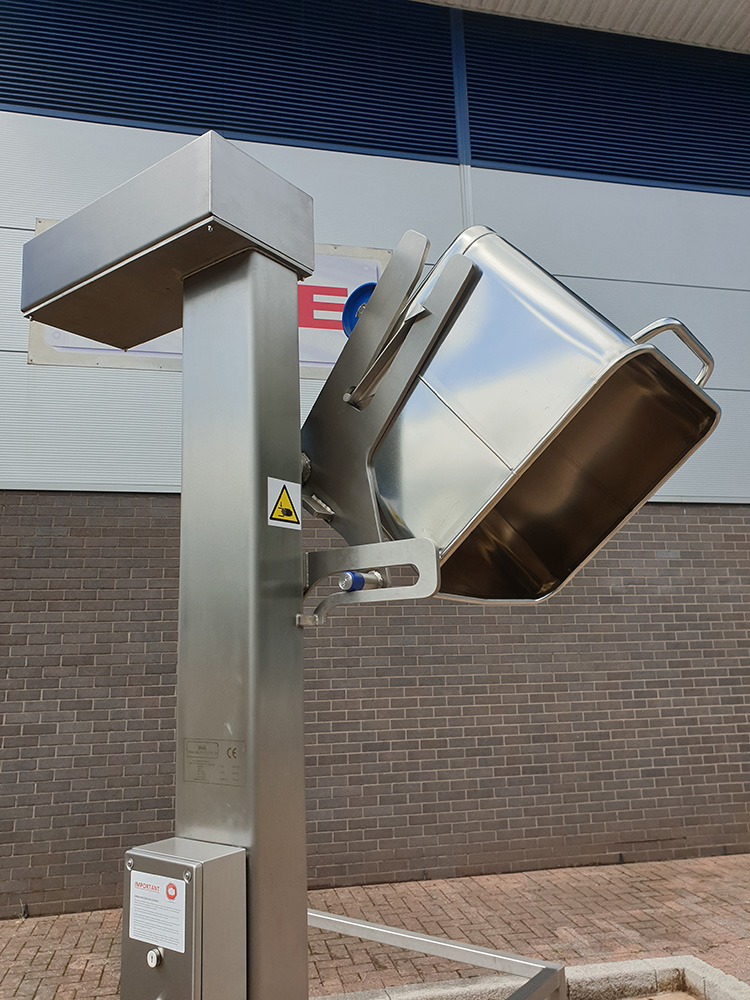

This Single Pillar Mobile Bin Hoist is designed to lift and tip a 200 Litre tote bin at a discharge height of 1850mm. The Mobile Bin Hoist is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be mobile on castors on a horizontal base frame. The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column. The unguarded Mobile Bin Hoist is fitted with our unique safety latch which engages automatically in the extremely unlikely event of a lift chain failure.
Mobile Bin Hoist Electrical Control

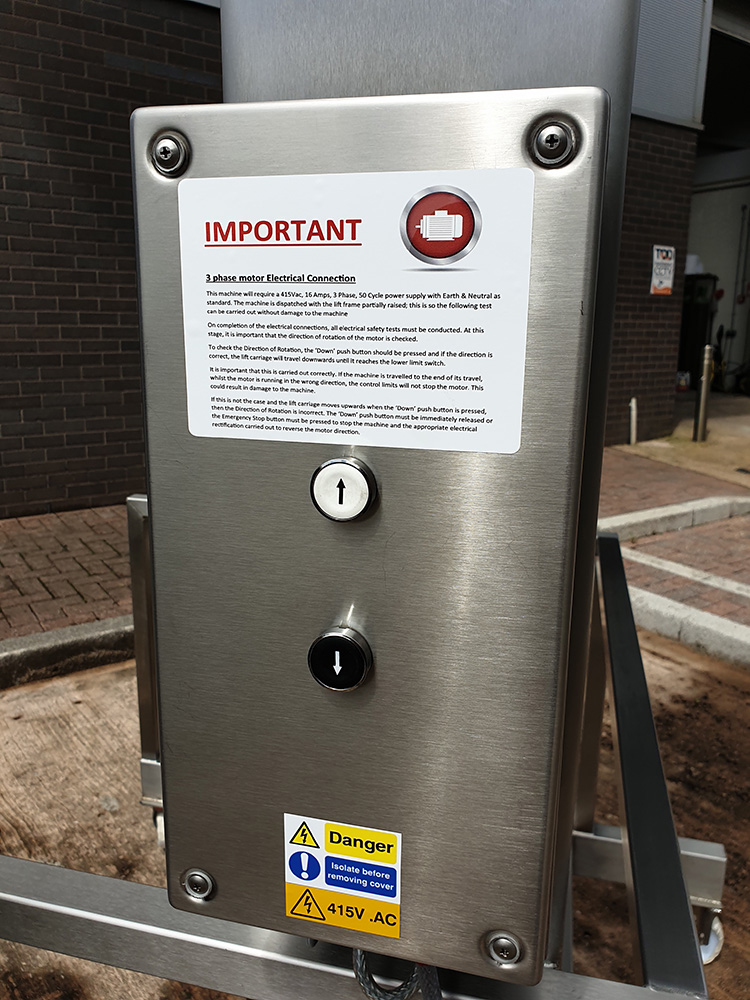

This Mobile Bin Hoist is fitted with an IP65 Stainless Steel Control Panel mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site. The unguarded Mobile Bin Hoist operates on a ‘hold to run’ principle such that the ‘Up’ or ‘Down’ pushbuttons must be held for the Mobile Bin Hoist to operate. As soon as either button is released, the Mobile Bin Hoist will stop. The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.
