240 Litre Wheelie Bin Tipper

BTM/300/2000/B/G

BTM/300/2000/B/G

Features

  • Stainless Steel or Mild Steel Construction
  • Standard and Custom Design Machines
  • Fully TIG/MIG Welded Construction
  • Lifts for all sizes of Wheelie Bins
  • Tip Heights up to Customers’ Requirements
  • Lifting Capacity up to 1000 Kgs
  • Chain or Screw Driven Complete with Unique Safety Latch
  • Fully Enclosed Safety Guard Option
  • Fully Load Tested and CE Certified
  • LOLER Inspection and After Sales Service Available
  • Direct from a British Manufacturer
Description

BTM/300/2000/B/G Single Pillar 240 Litre Wheelie Bin Tipper

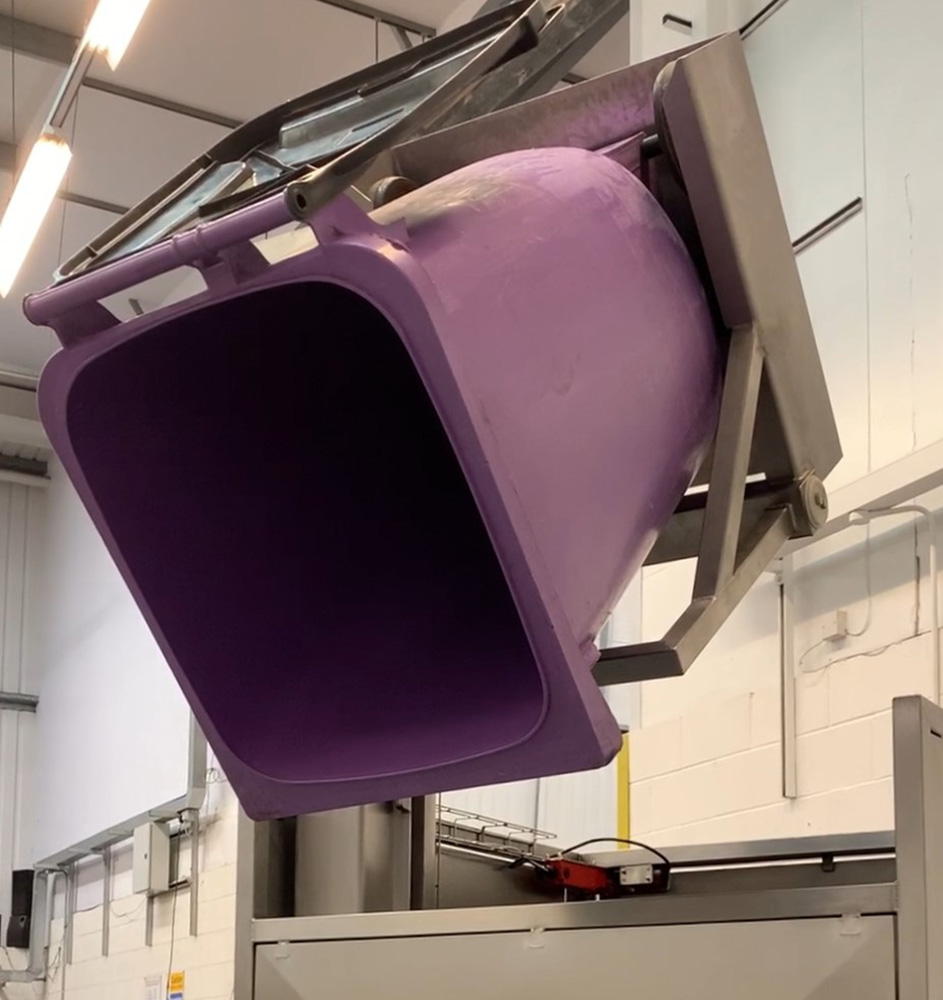

This Single Pillar 240 Litre Wheelie Bin Tipper is designed to lift and tip at a discharge height of 2000mm. The 240 Litre Wheelie Bin Tipper is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be bolted to the floor. The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column.

Safety Guard to BS EN 14120:2015 Safety of Machinery Guards

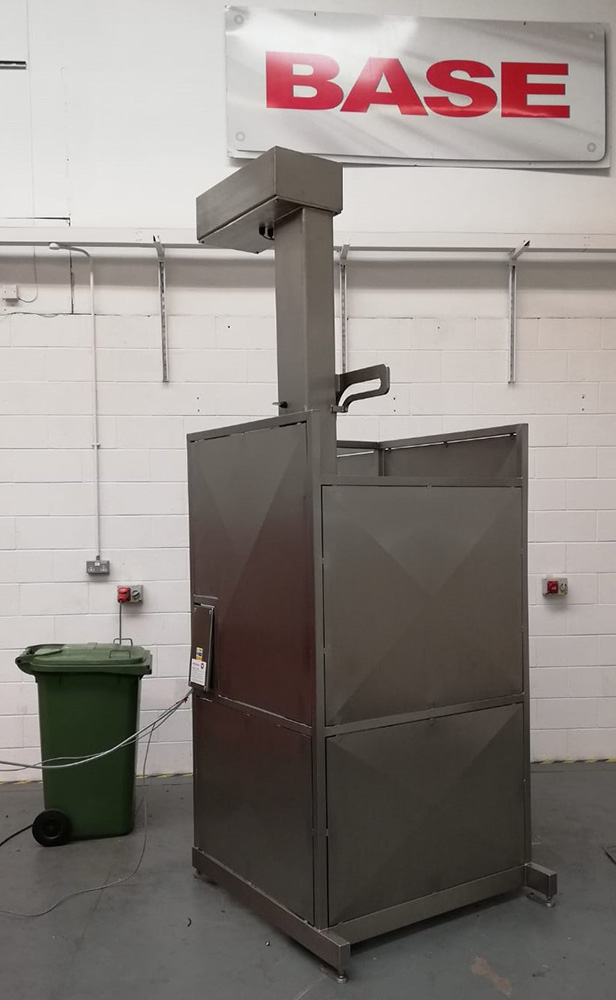

This 240 Litre Wheelie Bin Tipper was supplied complete with a safety guard to meet the guidelines of BS EN 14120:2015 Safety of Machinery Guards. The safety guard is constructed from 40 x 40 x 3mm stainless steel box section and 2.0mm stainless steel sheet. The safety guard encloses the 240 Litre Wheelie Bin Tipper to a height of 2200mm on two sides, 1950mm on the tipping side with a hinged guard door through which the bin is loaded. The guard door is electrically and mechanically interlocked preventing the 240 Litre Wheelie Bin Tipper from operating when the door is open. Additionally, the guard door can only be opened when the lift carriage is at the full down position to prevent access whilst a load is raised.

240 Litre Wheelie Bin Tipper Electrical Control

This 240 Litre Wheelie Bin Tipper is fitted with an IP65 Stainless Steel Terminal Box which is mounted on the safety guard at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). The control was incorporated into the Main Control System by others.

Specification
Description Single Pillar 240 Litre Wheelie Bin Tipper
Model No. BTM/300/2000/B/G
Capacity 300 Kgs
Tipping Height 2000mm
Tipping Angle 135 Degrees
Overall Height 3201mm
Machine Handing Right Hand
Maximum Headroom 4000mm
Tipping Chute No
Container Description 240 Litre Wheelie Bin
Base Arrangement Bolted To The Floor
Control Circuit 24Vac
Electrical Rating IP65
Limit Switches Telemecanique
Motor Detail 0.75kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE
Gearbox Detail SEW Eurodrive
Output R.P.M 28 R.P.M.
Ratio 50:1
Load/Lift/Tension Chain ¾" Simplex
Tensile Strength 3000 Kgs
Lift Speed 6.4 Meters/Minute
