Tote Dumper Heavy Duty

BTM/2P/1200/1000/B/G

BTM/2P/1200/1000/B/G

Features

  • Stainless Steel or Mild Steel Construction
  • Food/Pharmaceutical Industry Specification
  • Standard and Custom Design Machines
  • Fully TIG/MIG Welded Construction
  • Lifts for Bins, Drums, Palletainers etc
  • Tip Heights up to Customers’ Requirements
  • Lifting Capacity - No Maximum
  • Chain Drive
  • Fully Enclosed Safety Guard
  • Fully Load Tested and CE Certified
  • LOLER Inspection and After Sales Service Available
  • Direct from a British Manufacturer
Description

BTM/2P/1200/1000/B/G Double Pillar Tote Dumper Heavy Duty

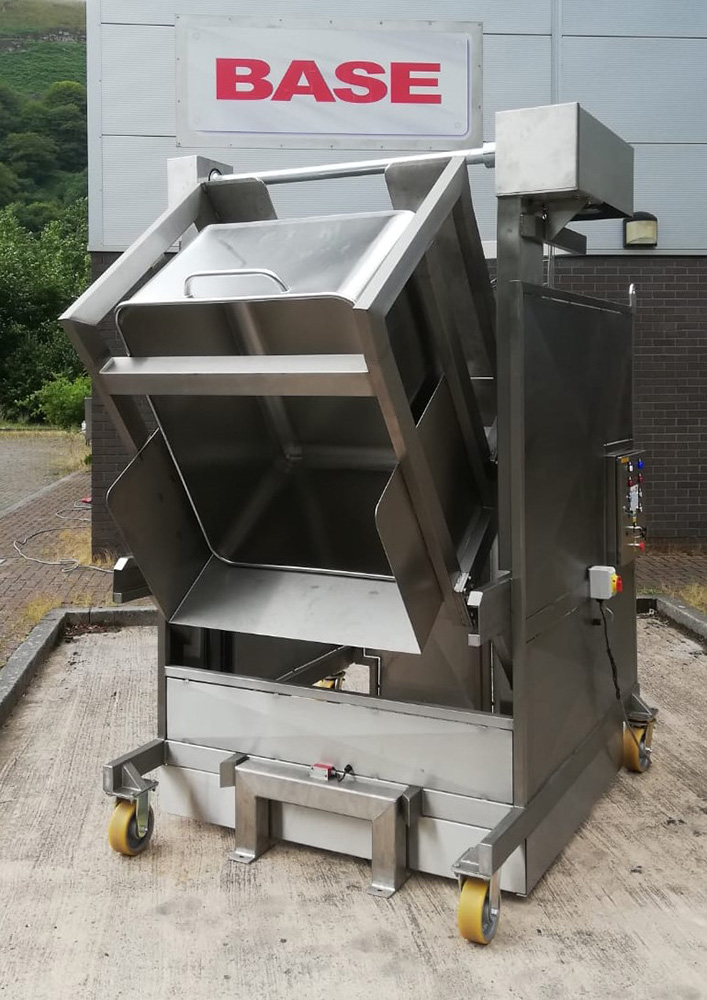

This Double Pillar Tote Dumper Heavy Duty is designed to lift and tip a 1000 Kgs Stainless Steel Tub (1200mm L x 1000mm W x 1000mm H) at a discharge height of 1000mm. The Tote Dumper Heavy Duty had a Safe Working Load of 1200 Kgs. It is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be bolted to the floor. The lifting is accomplished via chains driven by a motor gearbox mounted at the top of the one column with a crossover shaft to the other column.

Safety Guard to BS EN 14120:2015 Safety of Machinery Guards

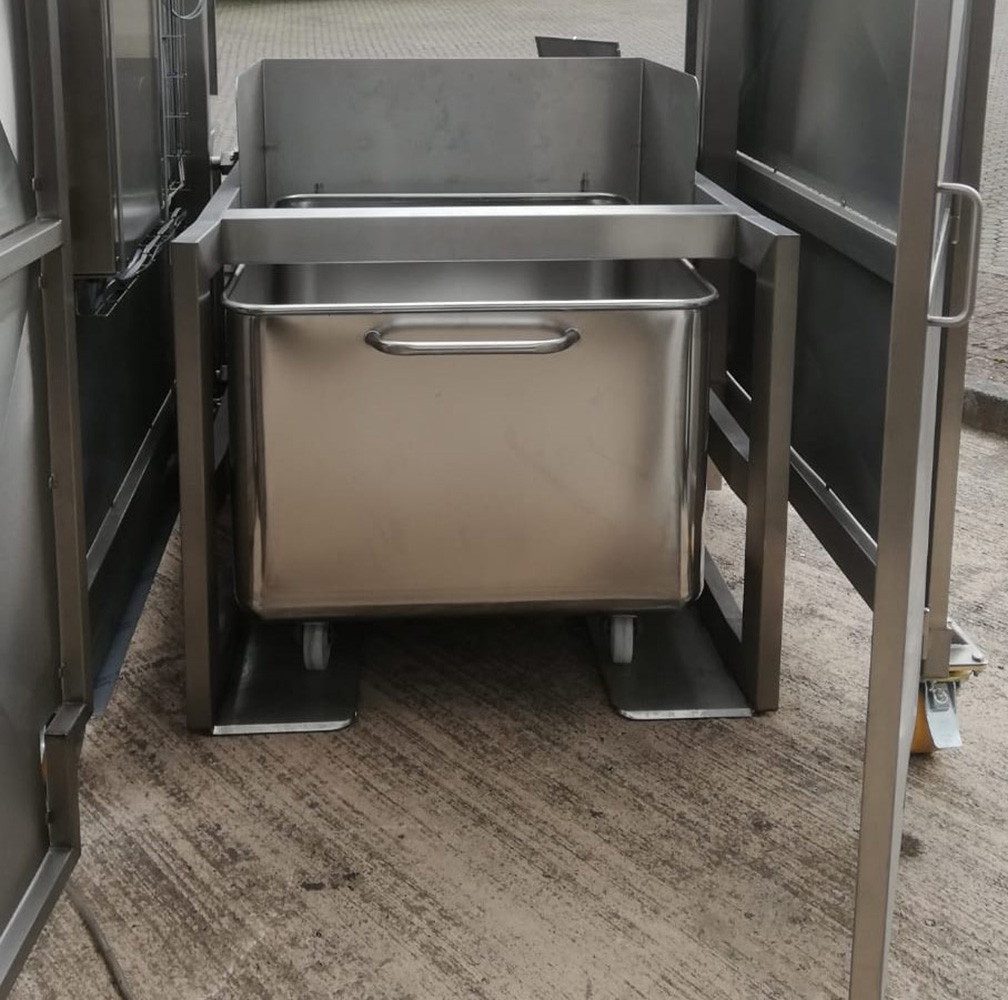

This Tote Dumper Heavy Duty was supplied complete with a safety guard to meet the guidelines of BS EN 14120:2015 Safety of Machinery Guards. The safety guard is constructed from 40 x 40 x 3mm box section and 2.0mm stainless steel sheet. It encloses the Tote Dumper Heavy Duty to a height of 2200mm on two sides, 800mm at the tipping position with a pair of hinged guard doors on the fourth side. The guard doors are electrically and mechanically interlocked preventing the Tote Dumper Heavy Duty from operating when a door is open. Additionally, the guard doors can only be opened when the lift carriage is at the full down position to prevent access whilst a load is raised.

Tote Dumper Heavy Duty Electrical Control

This Tote Dumper Heavy Duty is fitted with an IP65 Stainless Steel Control Panel which is mounted on the Safety Guard at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). The control panel incorporates the following controls; Up, Down, Guard Release, Emergency Stop and a Reset Facility.

Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site. The guarded Tote Dumper Heavy Duty operation is latched so that pressing the ‘Up’ push button once will raise the lift to the full tip position. Once the product has been discharged, pressing the ‘Down’ push button once will return the Tote Dumper Heavy Duty to the full down position. The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.

Specification
Description Double Pillar Tote Dumper Heavy Duty
Model No. BTM/2P/1200/1000/B/G
Capacity 1200 Kgs
Tipping Height 1000mm
Tipping Angle 130 Degrees
Overall Height 2890mm
Machine Handing Left Hand
Maximum Headroom 3000mm
Tipping Chute Yes, Fitted To Lift Carriage
Container Description ST/STL Tub (1200mm L x 1000mm W x 1000mm H)
Base Arrangement Bolted To The Floor
Control Circuit 24Vac
Electrical Rating IP65
Limit Switches Telemecanique
Gearbox Detail SEW Eurodrive
Motor Detail 2.2kW, 415V, 3 PHASE, 50 CYCLE C/W BRAKE
Load/Lift/Tension Chain 1" Simplex
Tensile Strength 6000 Kgs
Lift Speed 6.4 Meters/Minute
