Mezzanine Floor Lift

PLM/2P/1500/6570/B/G

PLM2P/1500/6570/B/G

Features

  • Stainless Steel or Mild Steel Construction
  • Food/Pharmaceutical Industry Specification
  • Standard and Custom Design Machines
  • Fully TIG/MIG Welded Construction
  • Goods Lifts for Pallets, Bins, Drums etc
  • Lift Heights – No Maximum
  • Lifting Capacity - No Maximum
  • Chain Drive
  • Fully Enclosed Safety Guard Option
  • Fully Load Tested and CE Certified
  • LOLER Inspection and After Sales Service Available
  • Direct from a British Manufacturer
Description

PLM/2P/1500/6570/B/G Mezzanine Floor Lift

This Mezzanine Floor Lift System consists of an Infeed Conveying System, a Mezzanine Floor Lift and an Outfeed Conveying System. The Mezzanine Floor Lift would have a 1500 Kgs Safe Working Load and a 6570mm lift height. The maximum stacked height of a lift will not exceed 2000mm and the maximum load will not exceed 1500 Kgs. Some of the Pallets will contain 4 off Drums and the overall size of the load will be approximately 1250 x 1250mm.

The Mezzanine Floor Lift was be positioned at the edge of a Mezzanine Floor with an Infeed Conveyor System at the bottom, a Transfer Conveyor on the Lift Carriage and an Outfeed Conveyor System at the top. All Conveyors were 1500mm Wide x 1500mm long with a Safe Working Load of 1500 Kgs. The Pallets were loaded onto the Infeed Conveyor System using a Fork Lift Truck and were unloaded at the Upper Level using a special lift truck. The Mezzanine Floor Lift was constructed from mild steel with a powder coated finish and was designed to be bolted to the floor without the need for a pit. The lifting is accomplished via a pair of Heavy Duty 1” Duplex Lifting Chains driven by a motor gearbox mounted at the top of the one column with a crossover shaft to the other column.

Safety Guard to BS EN 14120:2015 Safety of Machinery Guards

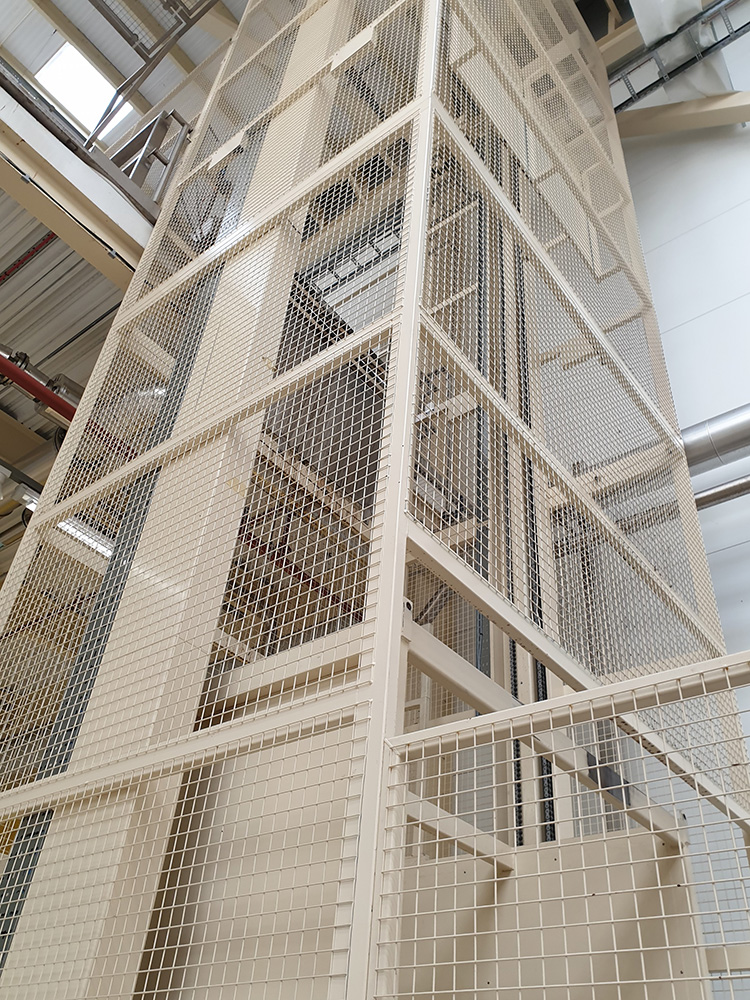

The safety guard is constructed from 40 x 40 x 3mm box section and 40 x 40 x 3mm wire weld mesh to meet the guidelines of BS EN 14120:2015 Safety of Machinery. The guard reached to a height of 2200mm above the upper floor level. There was also safety guarding along the sides of the Infeed and Outfeed Conveyor Systems with an opening at the end for loading and unloading. The entrance and exit from the systems will be protected by the use of Safety Light Barriers that will allow a Pallet to pass safely but will prevent the system from operating if personnel access the guarded area.



Mezzanine Floor Lift Electrical Control

The Mezzanine Floor Lift was supplied with a bespoke control system including HMI Control on the Main Panel, PLC, appropriate safety circuit, Conveyor and Lift Controls and Remote Push Button Stations positioned to suit at the Upper and Lower levels

.

Mezzanine Floor Lift Cleaning System

This cleaning system will be fitted to the Mezzanine Floor Lift during manufacture to allow access to the floor beneath the lift carriage for cleaning. The cleaning system will operate as follows:-

  • The lift frame must be empty, at the full up position and the safety guard gate must be closed
  • At the full up position, the lift carriage is prevented from falling by a 50mm support bar driven out beneath the lift carriage using an electrical actuator
  • As the bar is engaged, it will alter the state of 2 off separate safety limit switches
  • The one switch will disable the Mezzanine Floor Lifts safety circuit and relay
  • The second limit switch will allow the lower safety guard door to be opened providing that the Cleaning Key Switch has been operated
  • It is now safe to enter the lift enclosure for cleaning purposes with the pallet lift disabled and the lift carriage supported
  • Once cleaning is complete, the above sequence is reversed
  • Specification
    Description 1500 Kgs Double Pillar Mezzanine Floor Lift
    Model No. PLM/2P/1500/6570/B/G
    Capacity 1500Kgs
    Lift Height 6570mm
    Overall Height 10650mm
    Platform Conveyor Size 1500 x 500mm
    Machine Handing Right Hand
    Maximum Headroom 12000mm
    Container Description Palletainers (1200 x 1000 x 1400mm High) 4 off DRUMS (1250 x 1250 x 1400mm High)
    Base Arrangement Bolted To The Floor
    Control Circuit 24Vac
    Electrical Rating IP65
    Limit Switches Telemecanique
    Motor Detail 3.0kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE
    Gearbox Detail SEW Eurodrive
    Load/Lift/Tension Chain 1" Duplex
    Tensile Strength 12000 Kgs
    Tension Chain 1" Simplex
    Lift Speed 12.0 Meters/Minute
