Pneumatic Bin Wash Tipper

BTP/75/900/B

BTP/75/900/B

Features

  • Stainless Steel or Mild Steel Construction
  • Food/Pharmaceutical Industry Specification
  • Standard and Custom Design Machines
  • Fully TIG/MIG Welded Construction
  • Lifts for Bins, Drums, Dolafs, Palletainers etc
  • Tip Heights up to 1500mm
  • Lifting Capacity - No Maximum
  • Hydraulic or Pneumatic Cylinders Complete with Hose Burst Fuses
  • Fully Enclosed Safety Guard Option
  • Fully Load Tested and CE Certified
  • LOLER Inspection and After Sales Service Available
  • Direct from a British Manufacturer
Description

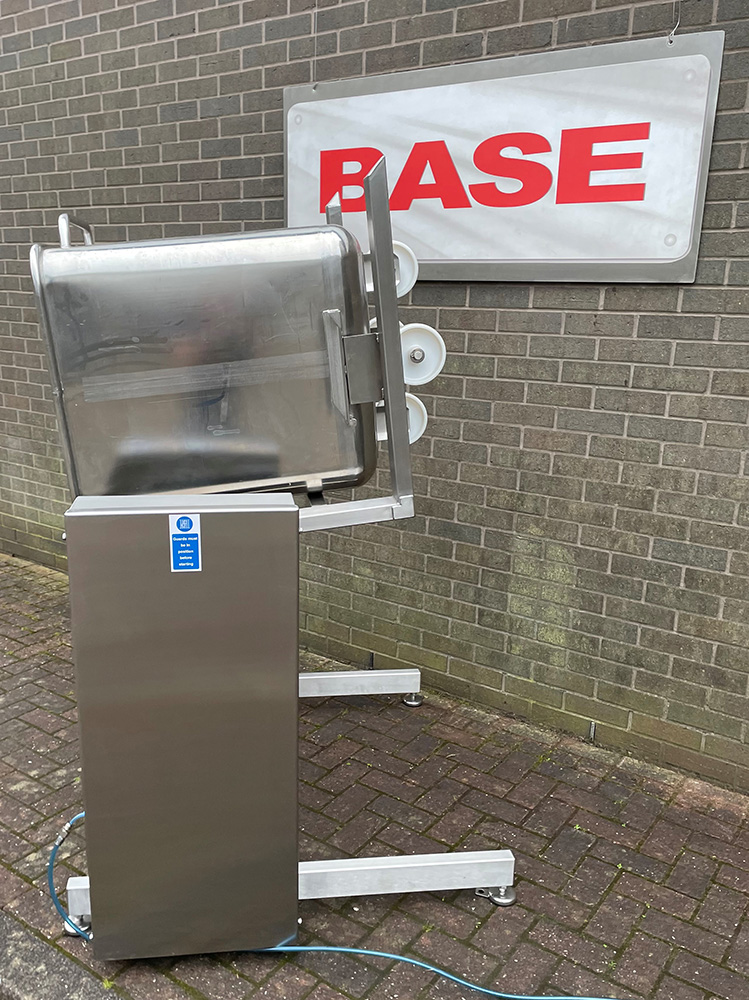

BTP/75/900/B Pneumatic Bin Wash Tipper

This Pneumatic Bin Wash Tipper is designed to lift and tip a 200 or 300 Litre Stainless Steel Tote Bin to a tip height of approximately 900mm from the floor. This Pneumatic Bin Wash Tipper would be powered pneumatically and the bin would be tipped over by a pneumatic cylinder to an angle of 10 degrees past the horizontal. This will allow both the inside and the outside of the bin to be pressure washed. The Pneumatic Bin Wash Tipper is constructed from Grade 304 stainless steel, is a fully TIG welded construction throughout and would be bolted to the floor.



Pneumatic Bin Wash Tipper Control

This Pneumatic Bin Wash Tipper is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main frame. The unguarded Pneumatic Bin Wash Tipper has ‘dead man’s handle’ control such that the ‘Up’ or ‘Down’ pushbuttons must be held for the pneumatic bin washer to operate. As soon as the button is released, the Pneumatic Bin Wash Tipper will stop.



Specification
Description Pneumatic Bin Wash Tipper
Model No. BTP/75/900/B
Lifting Capacity 75 Kgs
Tipping Height 900mm
Tipping Angle 100 Degrees
Machine Handing Left Hand
Container Description Stainless Steel Tote Bin
Base Arrangement Free Standing
Pneumatic Cylinder Festo 100mm Bore x 320mm Long
