Trolley Tipper

BTM/300/2200/B

BTM/300/2200/B

Features

  • Stainless Steel or Mild Steel Construction
  • Food/Pharmaceutical Industry Specification
  • Standard and Custom Design Machines
  • Fully TIG/MIG Welded Construction
  • Lifts for Bins, Drums, Trays etc
  • Tip Heights up to 2500mm
  • Lifting Capacity up to 600Kgs
  • Chain or Screw Driven Complete with Unique Safety Latch
  • Fully Enclosed Safety Guard Option
  • Fully Load Tested and CE Certified
  • LOLER Inspection and After Sales Service Available
  • Direct from a British Manufacturer
Description

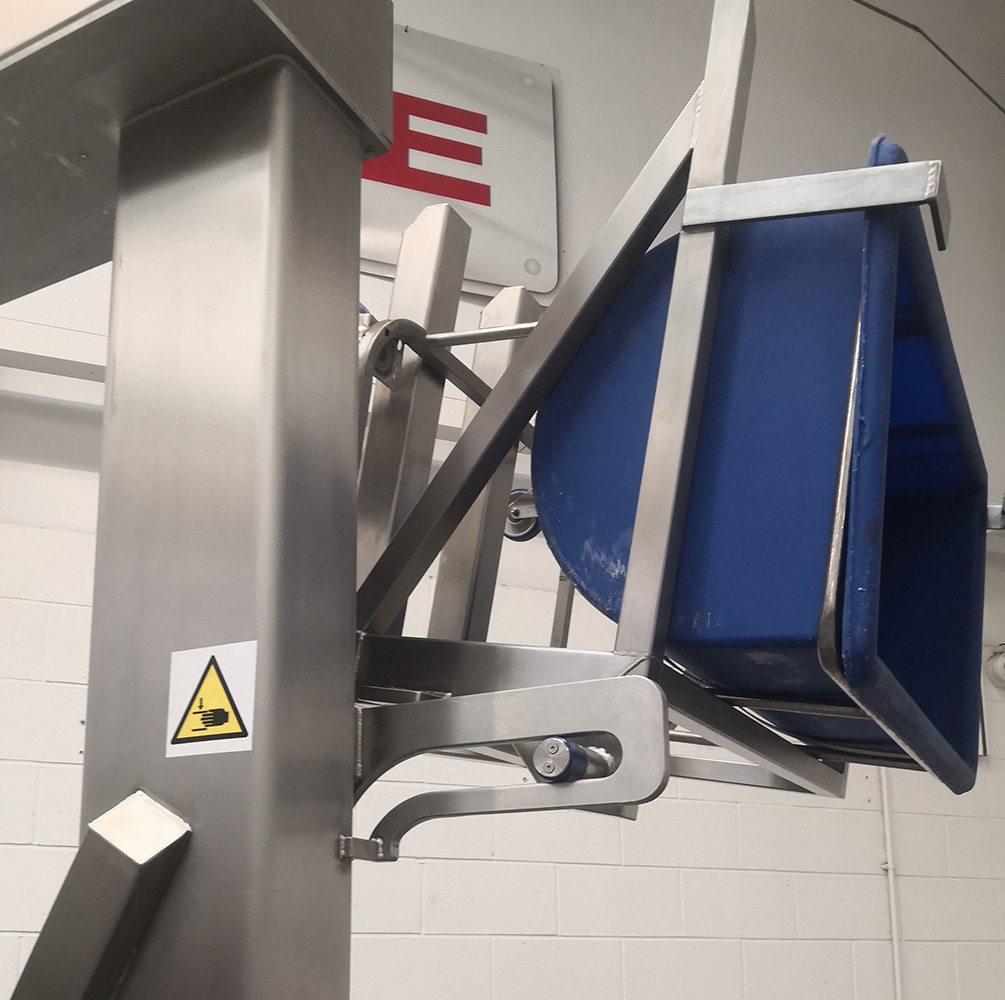

BTM/300/2200/B Single Pillar Trolley Tipper

This Single Pillar Trolley Tipper is designed to lift and tip a Blue Plastic Trough on a Trolley at a discharge height of 2200mm. The Trolley Tipper is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be bolted to the floor. The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column. The unguarded Trolley Tipper is fitted with our unique safety latch which engages automatically in the extremely unlikely event of a lift chain failure.

Trolley Tipper Electrical Control

This Trolley Tipper is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site. The unguarded Trolley Tipper operates on a ‘hold to run’ principle such that the ‘Up’ or ‘Down’ pushbuttons must be held for the Trolley Tipper to operate. As soon as either button is released, the Trolley Tipper will stop. The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.

Specification
Description Single Pillar Trolley Tipper
Model No. BTM/300/2200/B
Safe Working Load 300 Kgs
Tipping Height 2200mm
Tipping Angle 135 Degrees
Overall Height 3035mm
Machine Handing Right Hand
Maximum Headroom 3200mm
Tipping Chute No
Container Description Blue Plastic Trough on a Trolley
Base Arrangement Base Frame Bolted To The Floor
Control Circuit 24Vac
Electrical Rating IP65
Limit Switches Telemecanique
Motor Detail 0.75kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE
Gearbox Detail SEW Eurodrive
Output R.P.M 28 R.P.M.
Ratio 50:1
Load/Lift/Tension Chain ¾" Simplex
Tensile Strength 3000 Kgs
Lift Speed 6.4 Meters/Minute
