BTM/250/1525/M Single Pillar Mixing Bowl Tipper

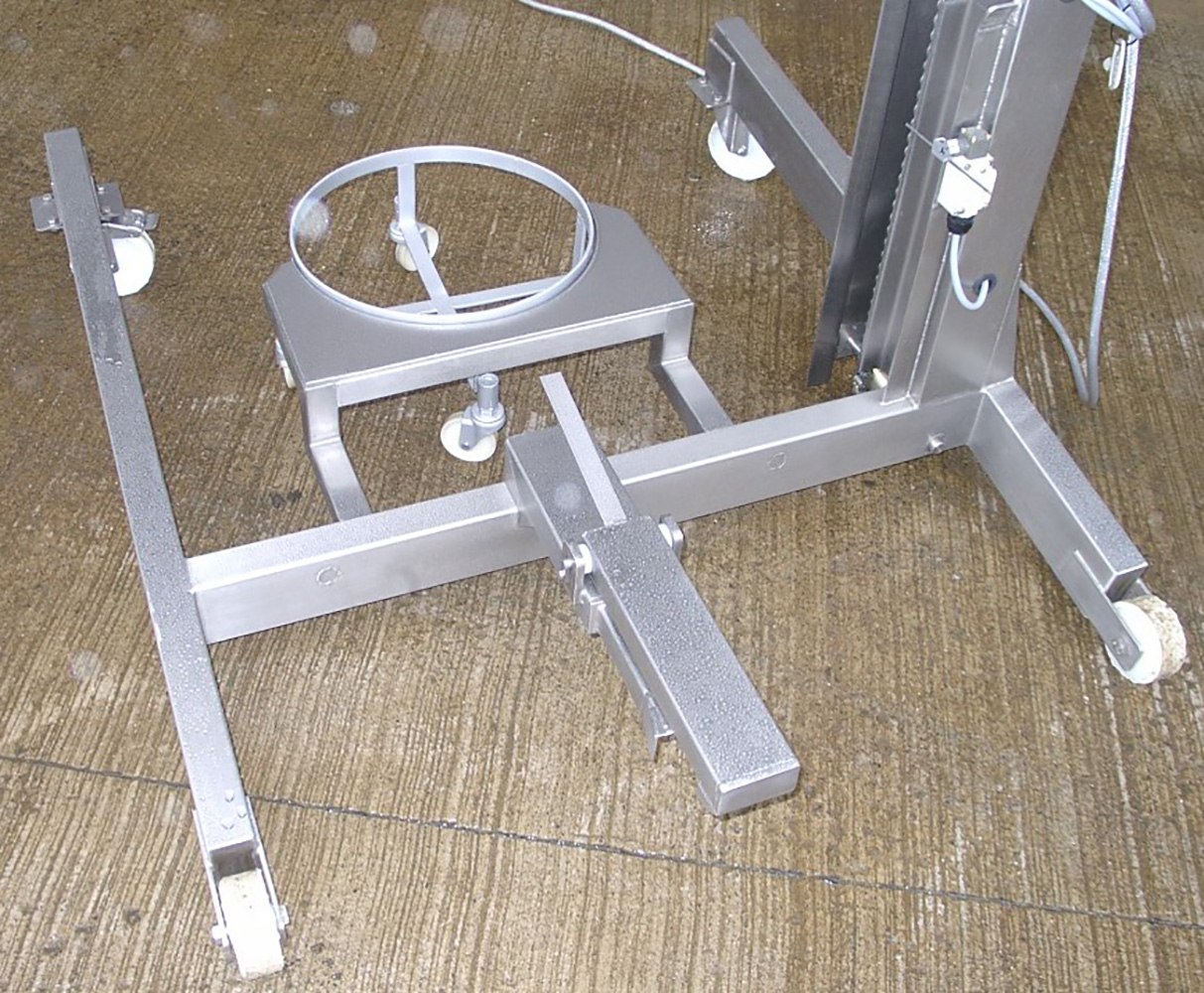

This Mobile Single Pillar Mixing Bowl Tipper is designed to lift and tip at a discharge height of 1525mm. The Mixing Bowl Tipper is manufactured from Grade 304 stainless steel and is a welded construction throughout. The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column. The Mixing Bowl Tipper is fitted with our unique safety latch which engages automatically in the extremely unlikely event of a lift chain failure.
Mixing Bowl Tipper Electrical Control
This Mixing Bowl Tipper is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). The Mixing Bowl Tipper has ‘dead man’s handle’ control such that the ‘Up’ or ‘Down’ pushbuttons must be held for the Mixing Bowl Tipper to operate. As soon as the button is released, the Mixing Bowl Tipper will stop. The control panel has the facility for a ‘Call to Run’ signal to be connected if required.
