ATEX Platform Lift

PLM/2P/1250/2840/B/G/ATEX

PLM/2P/1250/2840/B/G/ATEX

Features

  • Stainless Steel or Mild Steel Construction
  • Food/Pharmaceutical Industry Specification
  • Standard and Custom Design Machines
  • Fully TIG/MIG Welded Construction
  • Goods Lifts for Pallets, Bins, Drums etc
  • Lift Heights – No Maximum
  • Lifting Capacity - No Maximum
  • Chain Drive
  • Fully Enclosed Safety Guard Option
  • Fully Load Tested and CE Certified
  • LOLER Inspection and After Sales Service Available
  • Direct from a British Manufacturer
Description

ATEX Platform Lift

This ATEX Platform Lift is a double pillar machine with a Safe Working Load of 1250 Kgs and a lift height of 2840mm. The lifting platform will be big enough to allow a pallet (1200 x 1000 x 1800mm) to be loaded using a hand pallet or fork lift truck. At the upper level, there was a landing plate to allow easy unloading. The ATEX Plat-form Lift was constructed from mild steel with an epoxy coated finish and was bolted to the bottom of a 50mm deep pit. Lifting with this ATEX Platform Lift was accomplished via chains driven by a motor gearbox mounted at the top of the one column with a crossover shaft to the other column. The lifting carriage was manufactured in stainless steel to give a hygienic finish.

Safety Guard To PD 5304 Safety of Machinery

The ATEX Platform Lift was installed into a lift shaft constructed from cladding. The structure of the safety guard was from 40 x 40 x 3mm mild steel box section but there was no need to mesh or sheet the guard other than at the door positions. Each door is electrically interlocked to prevent the ATEX Platform Lift being operated with a door open and in addition, the doors are mechanically locked closed whilst the ATEX Platform Lift is running. Each door may only be opened when the lifting carriage is at the appropriate level.

ATEX Specification

The ATEX Platform Lift was designed to be used in an ATEX Zone 2 & 22 environment with a temperature rating of T4 for gas and T135°C for dust.

ATEX Platfrom Lift Application Story

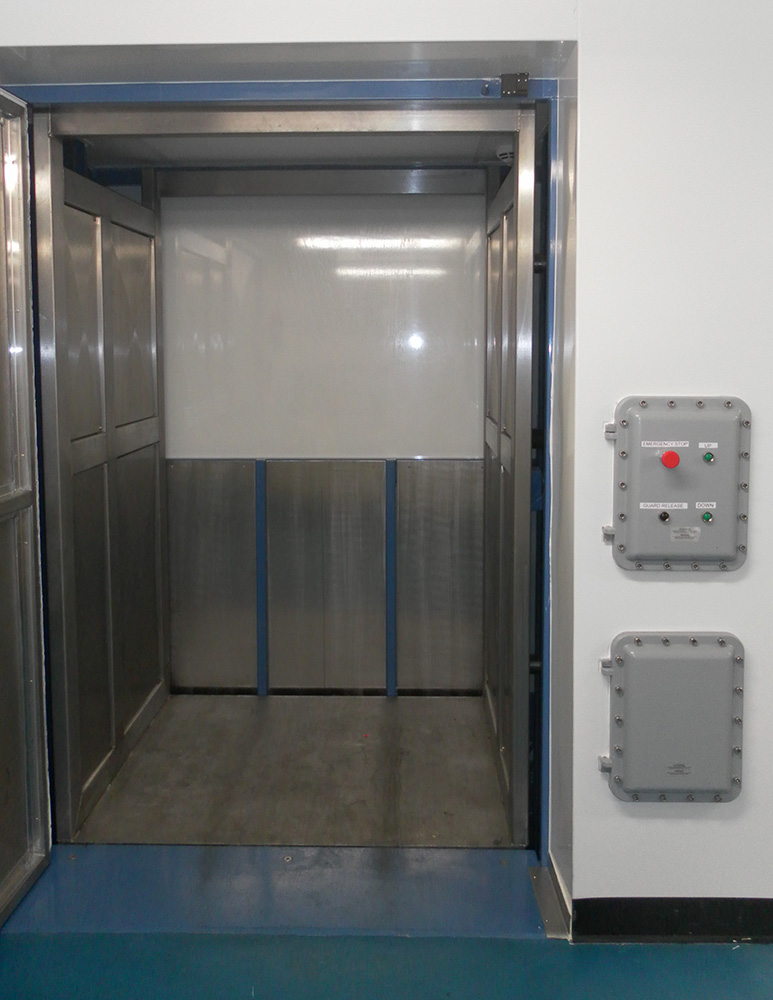

This ATEX Platform Lift was required to elevate a Pallet (1200 x 1000 x 1800mm) from a ground floor level onto a mezzanine floor at a height of 2840mm. This particular ATEX Platform Lift had a ‘Z’ loading configuration so that the pallet was loaded at the front and unloaded at the back of the machine at the upper level.

Specification
Description 1250 Kgs ATEX Platform Lift
Model No. PLM/2P/1250/2840/B/G/ATEX
Capacity 1250 Kgs
Lift Height 2840mm
Overall Height 5590mm
Machine Handing Left or Right Hand Available
Platform Size 1300 x 1150mm
Container Description Pallet (1200 x 1000 x 1500mm High)
Base Arrangement Bolted To The Floor
Control Circuit 24Vac (Standard)
Electrical Rating To Suit An ATEX Environment
Limit Switches Adjustable Rod
Motor Detail 2.2kW, 415V, 3 PHASE, 50 CYCLE C/W BRAKE
Motor Brake 415V Separately Excited
Gearbox Detail SIEMENS
Lift Chain 1” Simplex Sedis Delta ‘Z’
Tensile Strength 7500Kgs
Tension Chain 1” Simplex Sedis Delta 'Z'
Lift Speed 6.4 Meters/Minute
Application Story
