Heavy Duty Wheelie Bin Tipper

BTM/600/2100/B/G

BTM/600/2100/B/G

Features

  • Stainless Steel or Mild Steel Construction
  • Standard and Custom Design Machines
  • Fully TIG/MIG Welded Construction
  • Lifts for all sizes of Wheelie Bins
  • Tip Heights up to Customers’ Requirements
  • Lifting Capacity up to 1000 Kgs
  • Chain or Screw Driven Complete with Unique Safety Latch
  • Fully Enclosed Safety Guard Option
  • Fully Load Tested and CE Certified
  • LOLER Inspection and After Sales Service Available
  • Direct from a British Manufacturer
Description

BTM/600/2100/B/G Heavy Duty Wheelie Bin Tipper

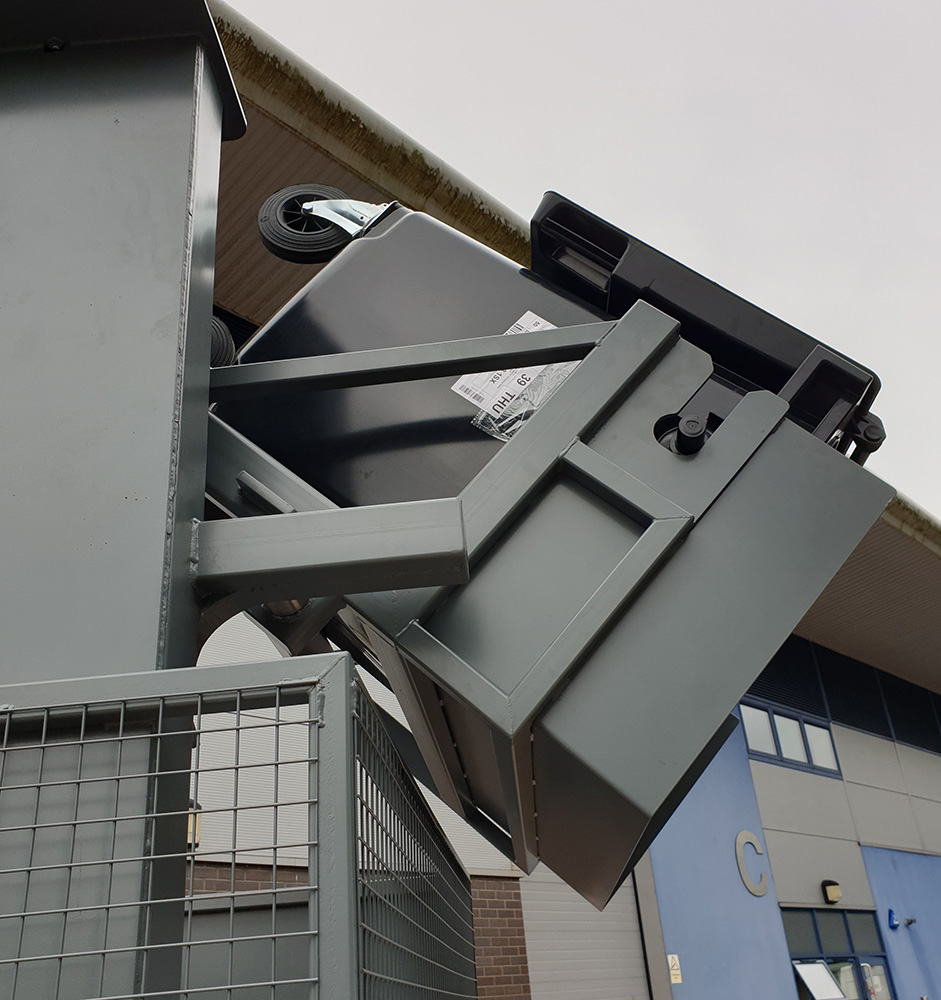

This Heavy Duty Wheelie Bin Tipper is designed to lift and tip a 660 Litre Wheelie Bin at a discharge height of 2100mm. The Heavy Duty Wheelie Bin Tipper is manufactured from mild steel, is a welded construction throughout and is designed to be bolted to the floor. The lifting is achieved by a 1” Simplex chain driven by a motor gearbox mounted at the top of the main column.

Safety Guard to BS EN 14120:2015 Safety of Machinery Guards

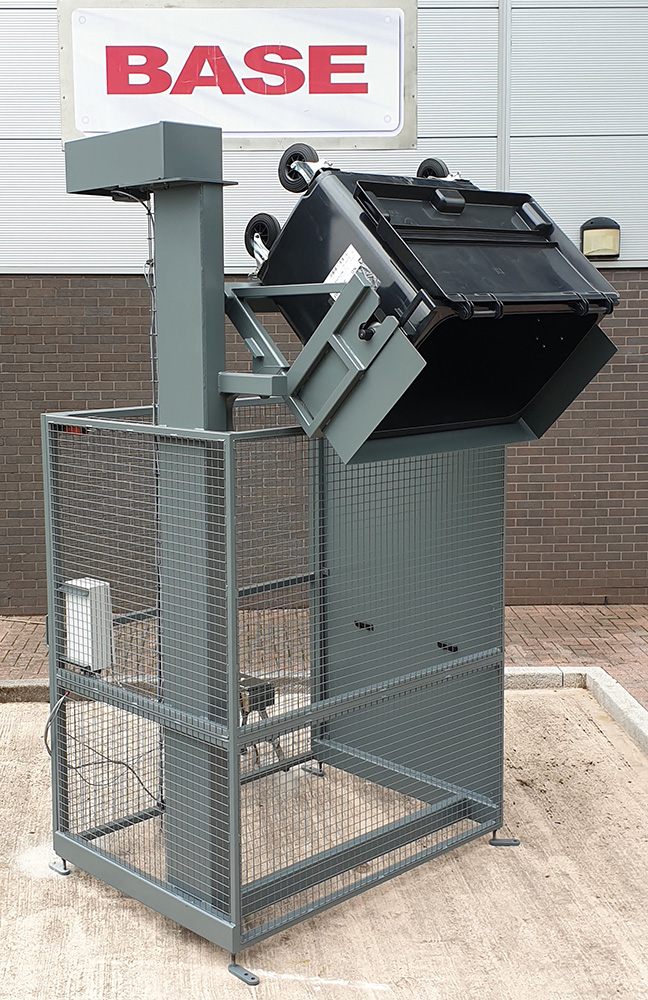

This Tipper was supplied complete with a safety guard to meet the guidelines of BS EN 14120:2015 Safety of Machinery Guards. The safety guard is constructed from 40 x 40 x 3mm box section and 2.0mm sheet. The safety guard encloses the Heavy Duty Wheelie Bin Tipper to a height of 2200mm on three sides, with a hinged guard door on the fourth side. The guard door is electrically and mechanically interlocked preventing the Heavy Duty Wheelie Bin Tipper from operating when the door is open. Additionally, the guard door can only be opened when the lift carriage is at the full down position to prevent access whilst a load is raised.

Heavy Duty Wheelie Bin Tipper Electrical Control

This Heavy Duty Wheelie Bin Tipper is fitted with an IP65 Terminal Box which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). The control was incorporated into the Main Control System by others.

Specification
Description Heavy Duty Wheelie Bin Tipper
Model No. BTM/600/2100/B/G
Capacity 600 Kgs
Tipping Height 2100mm
Tipping Angle 135 Degrees
Overall Height 3425mm
Machine Handing Right Hand
Maximum Headroom 4100mm
Tipping Chute Yes
Container Description 660 Litre Wheelie Bin
Base Arrangement Bolted To The Floor
Control Circuit 24Vac
Electrical Rating IP65
Limit Switches Telemecanique
Motor Detail 1.1kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE
Gearbox Detail SEW Eurodrive
Output R.P.M 28 R.P.M.
Ratio 50:1
Load/Lift/Tension Chain 1" Simplex
Tensile Strength 6000 Kgs
Lift Speed 6.4 Meters/Minute
